Features
Technology Features
• New higher contrast AAA-rated WXGA IPS
TFT LCD Color Touch Screen Technology
• Voice Guidance available with some processes
• IQ Live Stitch™
• Projects your embroidery design or sewing
stitches in an 8″ x 5″ (203mm x 127mm) area
• Advance and select stitches from projection
using the Dual-Purpose Stylus
• Select background color from projection
using Dual Purpose Stylus
• Set stitch width, length, and left/right shift
• Projection of Guide Beam, Grid, and Needle
Beam for precision alignment of stitches
• Buttonhole preview either
vertically or horizontally
• NeedleCam™ Digital Camera for embroidery
and sewing positioning with faster scanning
• Precise Touch Positioning™ using NeedleCam
• Camera detecting buttonhole
foot with stabilization plate
• IQ Designer Scanning Frame
• Enhanced Stadium Lighting for 14.1″ (358mm)
area of brighter true color LED lighting on
the needle and work area with 5 settings
• 2 (Type A) USB 2.0 drives
• Wireless Wi-LAN Function
• Directly download update files to machine
• IQ Intuition Monitoring®
• IQ Intuition Positioning®
• Design Database Transfer
• Palette 11 pattern transfer to
embroidery and IQ Designer
• NeverMiss™ Automatic Advanced
Threading System
• Digital Dual-Feed System
• StitchSync Regulation™
• Advanced Pivoting Feature and
Automatic Fabric Sensor System
• Automatic sensors
• Embroidery and sewing speed up to 1,050 spm
• Precise tracking system on embroidery carriage
• Resume mode for Embroidery and IQ Designer
• Programmable shutoff capabilities
• Eco power mode
• Wireless mouse compatible
Increase in bobbin capacity 4.5m (14.75 feet)
• Larger sewing bed and workspace with
14.1″ (358mm) to the right of the needle
• Frosted surface finish on machine bed
• Convenient one-touch buttons for
• Start/Stop
• Reverse sewing
• Reinforcement key
• Needle up/down
• Thread cutter
• Automatic presser foot lift
• Automatic needle threading
• Sewing speed control doubles as width control
• Quick-Set, Top-Loading bobbin with sensor
• Quick-Set Independent bobbin winding system
• One finger removable needle plate
for easy access cleaning
• Ergonomic 3-position, adjustable knee
lift with extra high presser foot lift – 10mm
Automatic and 13mm Manual
• Programmable 3-step needle up/down
• Adjustable volume with 5 settings
• Automatic thread cutter (with on/off capability)
• Needle plate with scale in inches and centimeters
and additional guideline markings
• Free arm
• Foldable two-spool thread stand attaches
magnetically to machine lid
• Two accessory storage
compartments in sewing tray
• Enhanced Accessory Storage Box
with 3 interchangeable trays

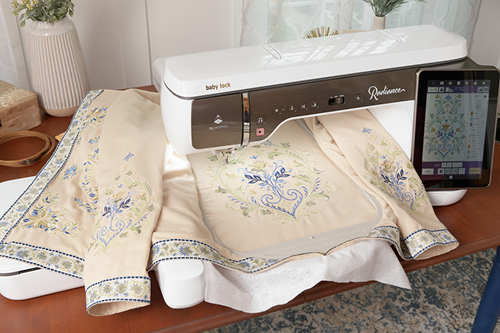

11 5/8" x 18 1/4" Embroidery Hoop
This is Baby Lock's LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.

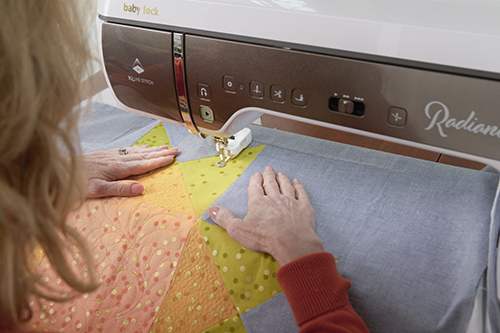

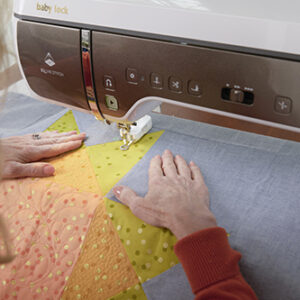

StitchSync™ Regulation
With the Stitch Regulator attachment choose between Intermittent, Continuous, or Basting mode for a variety of free-motion quilting techniques. This attachment has 3 interchangeable soles: quilting, open toe, and echo quilting.

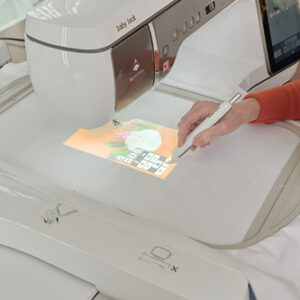

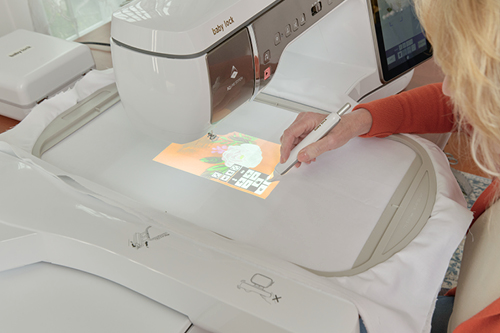

Largest Projection Area with IQ Live Stitch™
While in embroidery mode, select from 16 different projection background colors on fabric choices to see your design clearly in the 8" x 5" projection area.

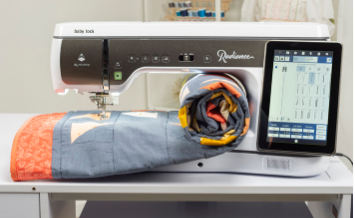

14.1" to the Right of the Needle
An unprecedented 14.1" to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full-size quilts.

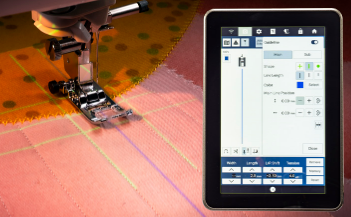

Precise Sewing Placement with Projected Guidelines
The Radiance uses a variety of guideline markers and grids for precise placement. While in sewing mode, switch between 16 different laser colors for better visibility. Choose from three main guideline patterns, 6 sub-guideline patterns as well as eight guideline angles.
Picture Play

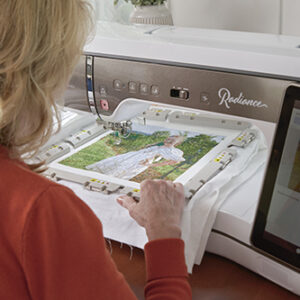

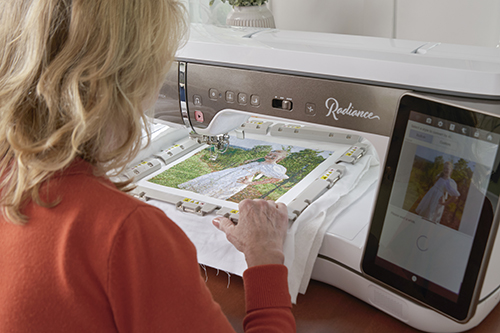

Import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. Recommended for use with the 10" x 10" (254mm x 254mm) embroidery frame.
IQ Designer and IQ Intuition Positioning®

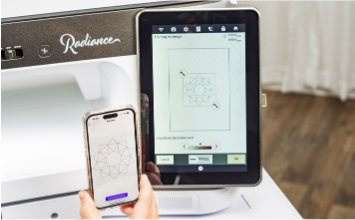

Create your own designs and quilt motifs with ease. Draw directly on the screen, scan in your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine from your smart phone using the IQ Intuition Positioning® App. Your art will be instantly converted for embroidery!

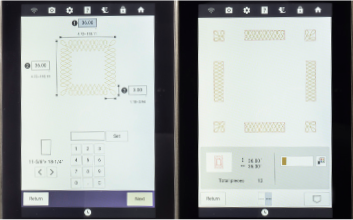

Edge-to-Edge Quilting
Create beautiful edge-to-edge quilting
projects using the 15 built-in patterns. Enter
a few measurements, select a hoop, specify
flip options, and the Radiance sets up your
entire quilt. The on-screen instructions
and design projections guide you every
step of the way for quilts measuring up
to 118" x 118"
Enhanced Quilt Borders and Sashing
Create beautiful quilt borders and sashing with unmatched precision using the 35 patterns and two shapes. Enter a few measurements, and the Radiance does the necessary calculations for you. The on-screen instructions guide you every step of the way for quilts measuring up to 118" x 118"
Embroidery Capabilities
• 1858 built-in embroidery designs
• 381 Baby Lock Exclusives
• 35 Sewlebrity designs
• 17 Buttonhole embroidery designs in 5 sizes
• 27 Buttonhole embroidery decoration designs
• 240 Large decorative stitch designs
• Couching Alphabet
• 74 Quilting designs
• 40 Couching patterns
• 7 Large-connect designs
• 7 Crochet lace designs
• 11 Large alphabet designs
• 18 Long-stitch designs
• 11 Applique designs
• 140 Frame combinations
• 39 font styles
• New hoop size with 115/8″ x 181/4″
(297mm x 465mm) embroidery field.
This hoop has a new locking mechanism
and side grips for fabric support.
• Embroidery design memory
capacity approximately 10MB
• Reads embroidery designs with a stitch
capacity of up to 850,000 stitches per
design and 127 color changes
• Color Visualizer with favorite color options
• 9-Point trial to check position
• Starting point key for instant alignment
of characters or patterns
• Alternate bobbin case when using bobbin
thread other than The Finishing Touch™
• On-screen grid
• Cuts jump stitches (with on/off capability)
• Embroider without removing the foot control
• Compatible with optional W+ Needle Beam Foot
11 5/8" x 18 1/4" Embroidery Hoop
This is Baby Lock's LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.
StitchSync™ Regulation
With the Stitch Regulator attachment choose between Intermittent, Continuous, or Basting mode for a variety of free-motion quilting techniques. This attachment has 3 interchangeable soles: quilting, open toe, and echo quilting.
Largest Projection Area with IQ Live Stitch™
While in embroidery mode, select from 16 different projection background colors on fabric choices to see your design clearly in the 8" x 5" projection area.
14.1" to the Right of the Needle
An unprecedented 14.1" to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full-size quilts.
Precise Sewing Placement with Projected Guidelines
The Radiance uses a variety of guideline markers and grids for precise placement. While in sewing mode, switch between 16 different laser colors for better visibility. Choose from three main guideline patterns, 6 sub-guideline patterns as well as eight guideline angles.
Picture Play
Import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. Recommended for use with the 10" x 10" (254mm x 254mm) embroidery frame.
IQ Designer and IQ Intuition Positioning®
Create your own designs and quilt motifs with ease. Draw directly on the screen, scan in your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine from your smart phone using the IQ Intuition Positioning® App. Your art will be instantly converted for embroidery!
Edge-to-Edge Quilting
Create beautiful edge-to-edge quilting
projects using the 15 built-in patterns. Enter
a few measurements, select a hoop, specify
flip options, and the Radiance sets up your
entire quilt. The on-screen instructions
and design projections guide you every
step of the way for quilts measuring up
to 118" x 118"
Enhanced Quilt Borders and Sashing
Create beautiful quilt borders and sashing with unmatched precision using the 35 patterns and two shapes. Enter a few measurements, and the Radiance does the necessary calculations for you. The on-screen instructions guide you every step of the way for quilts measuring up to 118" x 118"
Embroidery Editing Capabilities
• Combine embroidery designs on screen
• Character/text array function
• Character spacing
• Multi-line text with justification options
• Character insert and group edit capabilities
• Change fonts on letters or words
before or after the design is set
• 0.1°, 1°, 10°, and 90° pattern rotation
• Enhanced design enlargement (up to 200%)
and reduction (down to 60%) capabilities
• Design duplication
• Multiple design selection capabilities
• Automatic appliqué
• Automatic basting
• Add automatic stippling, echo
stitching, and decorative fill patterns
around embroidery designs
• Mirror imaging
• Change color selections within designs
• Enhanced color sorting to optimize sewing order
• Monochrome option for embroidery designs
• Programmable custom thread color palette
• 14 Major thread brands color palettes built-in
11 5/8" x 18 1/4" Embroidery Hoop
This is Baby Lock's LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.
StitchSync™ Regulation
With the Stitch Regulator attachment choose between Intermittent, Continuous, or Basting mode for a variety of free-motion quilting techniques. This attachment has 3 interchangeable soles: quilting, open toe, and echo quilting.
Largest Projection Area with IQ Live Stitch™
While in embroidery mode, select from 16 different projection background colors on fabric choices to see your design clearly in the 8" x 5" projection area.
14.1" to the Right of the Needle
An unprecedented 14.1" to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full-size quilts.
Precise Sewing Placement with Projected Guidelines
The Radiance uses a variety of guideline markers and grids for precise placement. While in sewing mode, switch between 16 different laser colors for better visibility. Choose from three main guideline patterns, 6 sub-guideline patterns as well as eight guideline angles.
Picture Play
Import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. Recommended for use with the 10" x 10" (254mm x 254mm) embroidery frame.
IQ Designer and IQ Intuition Positioning®
Create your own designs and quilt motifs with ease. Draw directly on the screen, scan in your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine from your smart phone using the IQ Intuition Positioning® App. Your art will be instantly converted for embroidery!
Edge-to-Edge Quilting
Create beautiful edge-to-edge quilting
projects using the 15 built-in patterns. Enter
a few measurements, select a hoop, specify
flip options, and the Radiance sets up your
entire quilt. The on-screen instructions
and design projections guide you every
step of the way for quilts measuring up
to 118" x 118"
Enhanced Quilt Borders and Sashing
Create beautiful quilt borders and sashing with unmatched precision using the 35 patterns and two shapes. Enter a few measurements, and the Radiance does the necessary calculations for you. The on-screen instructions guide you every step of the way for quilts measuring up to 118" x 118"
Advanced Sewing Capabilities
• 1610 Built-in stitches including
• 184 Utility including 15 one-step buttonhole
styles and 1 four-step custom buttonhole
• 527 Decorative
• 79 Decorative satin
• 20 Satin
• 21 Cross-stitch
• 63 Combinable Utility
• 3 Hand-look Quilting
• 20 Tapering
• 4 Built-in alphabets
• 40 Quilting stitches offer 57
needle position options
• Stitch length 0.0mm – 5.0mm (Stitch length over
2mm can increase in increments of 0.2mm)
• 2 Basting stitch options:
Regular (5mm) and free-motion
• Maximum Utility stitch width 7mm
• Utility stitch editing capabilities
• 5 Memory settings for each Utility stitch
• Decorative stitch editing capabilities
• Sewing function is available while
the embroidery arm is attached
• Specify end-point for stitch line with
capability to end with a completed pattern
• Stitch taper for specifying start and end
angles of a select category of stitches
• Dual Feed Foot
• Stitch Regulator
• Automatic drop feed key on screen
• Lock key for Utility and Decorative stitches
• Reinforcement priority settings
• Lateral and diagonal feeding
• Variable needle positions
• Fully automatic built-in darning
• Twin needle setting
11 5/8" x 18 1/4" Embroidery Hoop
This is Baby Lock's LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.
StitchSync™ Regulation
With the Stitch Regulator attachment choose between Intermittent, Continuous, or Basting mode for a variety of free-motion quilting techniques. This attachment has 3 interchangeable soles: quilting, open toe, and echo quilting.
Largest Projection Area with IQ Live Stitch™
While in embroidery mode, select from 16 different projection background colors on fabric choices to see your design clearly in the 8" x 5" projection area.
14.1" to the Right of the Needle
An unprecedented 14.1" to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full-size quilts.
Precise Sewing Placement with Projected Guidelines
The Radiance uses a variety of guideline markers and grids for precise placement. While in sewing mode, switch between 16 different laser colors for better visibility. Choose from three main guideline patterns, 6 sub-guideline patterns as well as eight guideline angles.
Picture Play
Import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. Recommended for use with the 10" x 10" (254mm x 254mm) embroidery frame.
IQ Designer and IQ Intuition Positioning®
Create your own designs and quilt motifs with ease. Draw directly on the screen, scan in your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine from your smart phone using the IQ Intuition Positioning® App. Your art will be instantly converted for embroidery!
Edge-to-Edge Quilting
Create beautiful edge-to-edge quilting
projects using the 15 built-in patterns. Enter
a few measurements, select a hoop, specify
flip options, and the Radiance sets up your
entire quilt. The on-screen instructions
and design projections guide you every
step of the way for quilts measuring up
to 118" x 118"
Enhanced Quilt Borders and Sashing
Create beautiful quilt borders and sashing with unmatched precision using the 35 patterns and two shapes. Enter a few measurements, and the Radiance does the necessary calculations for you. The on-screen instructions guide you every step of the way for quilts measuring up to 118" x 118"
Included Accessories
• Dual Purpose Stylus
• Adjustable knee lifter with 3-position handle
• Advanced multi-function foot controller
• 17 Presser feet
• 1/4″ Quilting foot with a guide
• Blind stitch
• Button fitting
• Camera Detecting Buttonhole
foot with stabilization plate
• Couching Dual Feed sole
• Compact Digital Dual-Feed System
• Embroidery foot “W”
• Embroidery couching foot
• Free-motion echo
• Free-motion open toe quilting
• Free-motion quilting
• General purpose zigzag
• Advanced monogramming N+
• Overcasting
• Stitch Regulator
• Stitch Regulator Quilting sole
• Stitch Regulator Open Toe Quilting sole
• Stitch Regulator Echo Quilting sole
• Straight Stitch
• Zipper
• Easy-lock accessory case for presser foot
storage with 3 interchangeable trays
• 2 Thread king spool stand for larger cones
• Straight stitch needle plate
• Bobbin Covers with and without markings
• Alternate bobbin case
• Bobbin center pin
• Embroidery bobbin thread
• Bobbins
• Embroidery Positioning Stickers (2 Sheets)
• End-point stickers (4 sheets,
243 stickers per sheet)
• White needle calibration stickers
• Multi-position screwdriver
• Presser foot adaptor
• Seam ripper
• Scissors
• Eyelet Punch
• Spool nets (2)
• Foot control
• Twin needle
• Yarn guide for couching
• Yarn threader
• Scanning frame with magnets
• Embroidery Support Table
• Embroidery hoops
• 115/8″ x 181/4″ (297mm x 465mm)
• 105/8″ x 105/8″ (272mm x 272mm)
• 5″ x 7″ (130mm x 180mm)
• 4″ x 4″ (100mm x 100mm)
11 5/8" x 18 1/4" Embroidery Hoop
This is Baby Lock's LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.
StitchSync™ Regulation
With the Stitch Regulator attachment choose between Intermittent, Continuous, or Basting mode for a variety of free-motion quilting techniques. This attachment has 3 interchangeable soles: quilting, open toe, and echo quilting.
Largest Projection Area with IQ Live Stitch™
While in embroidery mode, select from 16 different projection background colors on fabric choices to see your design clearly in the 8" x 5" projection area.
14.1" to the Right of the Needle
An unprecedented 14.1" to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full-size quilts.
Precise Sewing Placement with Projected Guidelines
The Radiance uses a variety of guideline markers and grids for precise placement. While in sewing mode, switch between 16 different laser colors for better visibility. Choose from three main guideline patterns, 6 sub-guideline patterns as well as eight guideline angles.
Picture Play
Import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. Recommended for use with the 10" x 10" (254mm x 254mm) embroidery frame.
IQ Designer and IQ Intuition Positioning®
Create your own designs and quilt motifs with ease. Draw directly on the screen, scan in your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine from your smart phone using the IQ Intuition Positioning® App. Your art will be instantly converted for embroidery!
Edge-to-Edge Quilting
Create beautiful edge-to-edge quilting
projects using the 15 built-in patterns. Enter
a few measurements, select a hoop, specify
flip options, and the Radiance sets up your
entire quilt. The on-screen instructions
and design projections guide you every
step of the way for quilts measuring up
to 118" x 118"
Enhanced Quilt Borders and Sashing
Create beautiful quilt borders and sashing with unmatched precision using the 35 patterns and two shapes. Enter a few measurements, and the Radiance does the necessary calculations for you. The on-screen instructions guide you every step of the way for quilts measuring up to 118" x 118"
Warranty
• 25 years casting limited
• 10 years parts
• 5 years circuit boards
• 5 years electrical
• 1 year labor
11 5/8" x 18 1/4" Embroidery Hoop
This is Baby Lock's LARGEST hoop yet! Use with the included embroidery table extension for added support for large projects.
StitchSync™ Regulation
With the Stitch Regulator attachment choose between Intermittent, Continuous, or Basting mode for a variety of free-motion quilting techniques. This attachment has 3 interchangeable soles: quilting, open toe, and echo quilting.
Largest Projection Area with IQ Live Stitch™
While in embroidery mode, select from 16 different projection background colors on fabric choices to see your design clearly in the 8" x 5" projection area.
14.1" to the Right of the Needle
An unprecedented 14.1" to the right of the needle for an overall workspace of 205 square inches giving you plenty of room to comfortably work on larger projects including full-size quilts.
Precise Sewing Placement with Projected Guidelines
The Radiance uses a variety of guideline markers and grids for precise placement. While in sewing mode, switch between 16 different laser colors for better visibility. Choose from three main guideline patterns, 6 sub-guideline patterns as well as eight guideline angles.
Picture Play
Import your own picture (up to 6MB) and select from 12 options to convert it to an embroidery design. Recommended for use with the 10" x 10" (254mm x 254mm) embroidery frame.
IQ Designer and IQ Intuition Positioning®
Create your own designs and quilt motifs with ease. Draw directly on the screen, scan in your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine from your smart phone using the IQ Intuition Positioning® App. Your art will be instantly converted for embroidery!
Edge-to-Edge Quilting
Create beautiful edge-to-edge quilting
projects using the 15 built-in patterns. Enter
a few measurements, select a hoop, specify
flip options, and the Radiance sets up your
entire quilt. The on-screen instructions
and design projections guide you every
step of the way for quilts measuring up
to 118" x 118"
Enhanced Quilt Borders and Sashing
Create beautiful quilt borders and sashing with unmatched precision using the 35 patterns and two shapes. Enter a few measurements, and the Radiance does the necessary calculations for you. The on-screen instructions guide you every step of the way for quilts measuring up to 118" x 118"
Reviews
There are no reviews yet.
