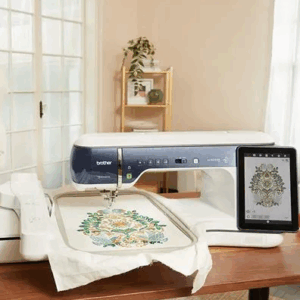

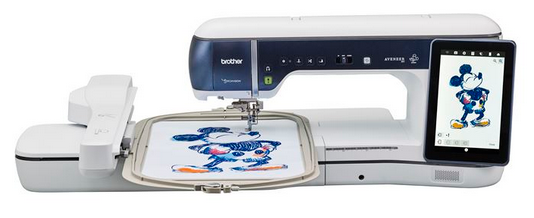

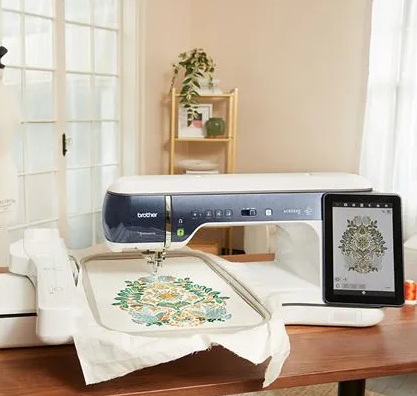

Brother Aveneer EV1 Sewing and Embroidery machine

It’s time to rediscover greatness with the most technologically advanced sewing, embroidery and quilting machine by Brother, the Aveneer EV1! Commanding attention with its sleek lines and modern, metallic blue exterior, the Aveneer EV1 looks as good as it performs. With the distinction of having the largest workspace and embroidery area of any Brother machine, the Aveneer EV1 is outfitted with precision projection and built-in Disney designs, elevating the experience of every use. Boasting an impressive combination of dynamic software, powerful wireless LAN capabilities, striking good looks, and sophisticated engineering, this state-of-the-art sewing, embroidery, and quilting machine offers a full suite of future-forward features. With the Aveneer EV1, the time is now to unlock your creativity.

AVAILABLE IN STORE ONLY

SKU: EV1 Category:

Description

  • Large Workspace, Embroidery and Projector Area An
    industry-leading 14.1” workspace (70 square inches) from needle to arm
    handles everything from large home décor projects to upcycled creations.

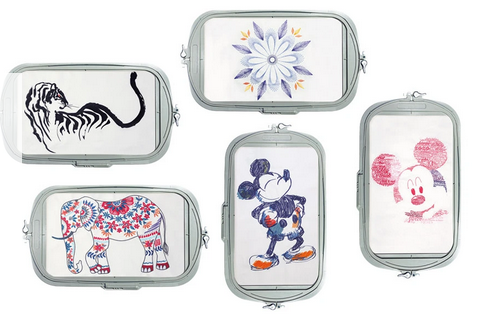

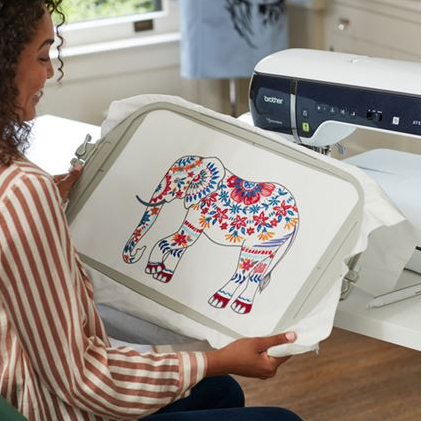

    The large 11 5/8” x 18 1/4” embroidery frame is the largest and most
    advanced embroidery frame ever offered by Brother. Project stitches or
    designs onto an 8” x 5” (127 x 203mm) projection area for precise
    placement and edit directly on fabric, such as moving, resizing, and
    rotating¹. When multiple designs are in place, selecting a specific
    object for editing is easy.
  • Picture Play Embroidery Function Using AI
    technology, the Picture Play Embroidery Function converts photos or
    images into thread art and displays it directly on-screen, giving the
    users the ability to effectively “paint with thread” for the ultimate
    customized presentation.
  • Intelligent Stitch Regulator Keeping all
    stitch lengths even, this feature adjusts the needle timing to match the
    actual speed of the fabric being fed into the machine. Includes three
    modes (Continuous, Intermittent, and Basting) and three free motion
    feet.

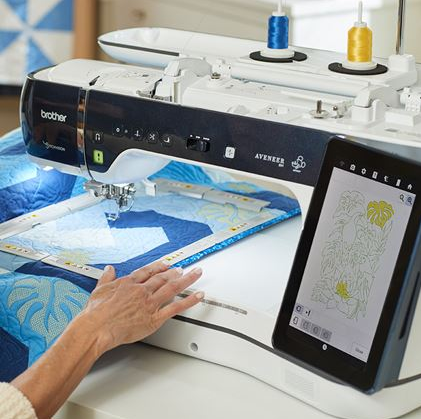

  • Edge-to-Edge Quilt Feature With
    easy-to-follow instructions and 15 patterns to choose from, this dynamic
    feature lets users finish their quilt top directly on the Aveneer EV1 –
    even with a 10” x 10” magnetic hoop! No need for a Long Arm! The bobbin
    now holds 10% more thread than previous models.

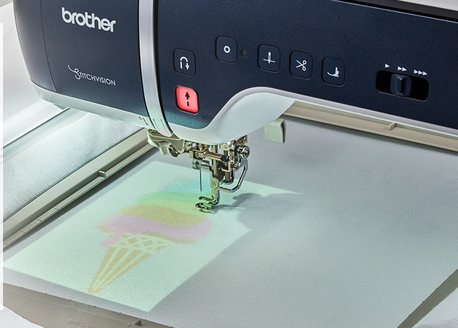

  • StitchVision Technology See stitches
    before making them! By projecting a marker line, square, circle, or grid
    directly on to fabric in one of 16 colors, this feature brings the
    reassurance of precision to every project¹.
  • Voice Guidance Feature Gently guides users
    audibly through next steps of a project with a choice of voice in 6
    languages. (This feature can be turned off.)
  • Mobile Apps App compatibility expands the
    creative possibilities of the EV1. The Artspira Mobile App² provides
    access to exclusive designs and projects in the hoop with the added
    ability to create unique patterns by drawing directly on a mobile device
    and then wirelessly transferring them to the EV1. Plus, the My Design
    Snap App² provides users the opportunity to digitize any photo in one of
    10 styles – all wirelessly between a mobile device and the EV1.
  • A Library of Built-in Designs Browsing a
    vast collection of over 800 sewing stitches, 1,858 embroidery designs,
    31 fonts, and over 200 Disney character patterns from the large 10.1"
    Capacitive LCD Touch Screen is easy and comfortable.

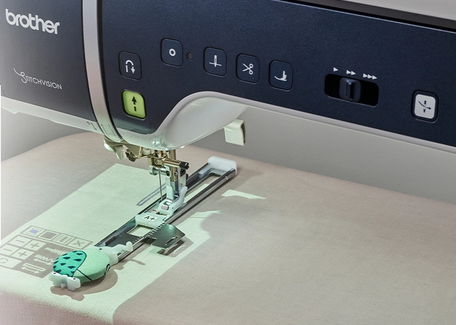

  • Buttonhole Preview A first in the industry
    and exclusive to Brother, this innovative feature lets users preview
    the style, vertical or horizontal placement, and spacing of buttonholes
    through the powerful projector¹.

Quiltbroidery

The EV1’s Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.

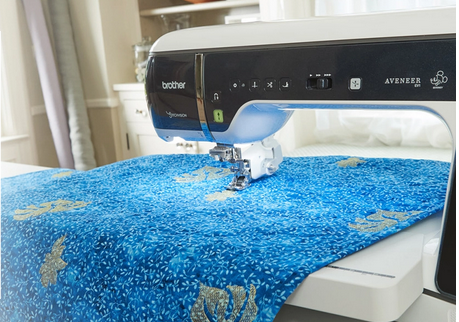

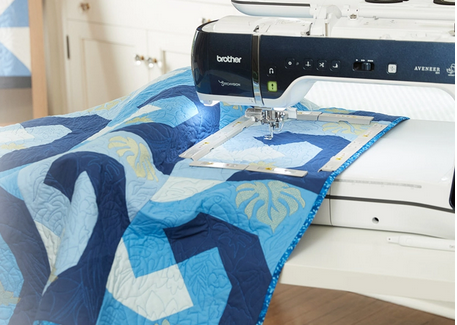

Edge-to-Edge Quilting

With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1 - even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!

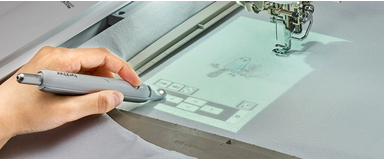

Dual-Purpose Stylus

For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

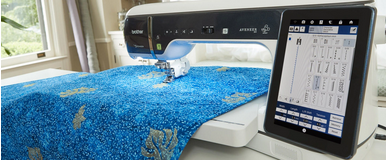

10.1" Capacitive Touch Screen

The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.

A Library of Built-in Designs

Browsing a vast collection of over 800 sewing stitches, 1,858 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable.

Buttonhole Preview

A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.

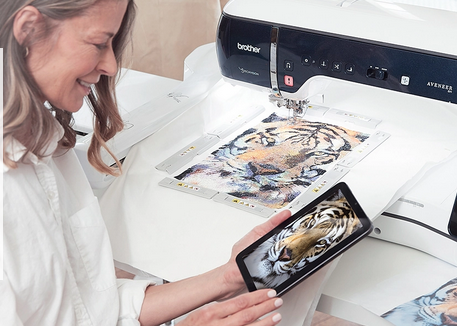

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaningful feature that grants users the ability to effectively "paint with thread".

ISR Edge Detection System

Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.

ISR Intelligent Stitch Regulator

Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

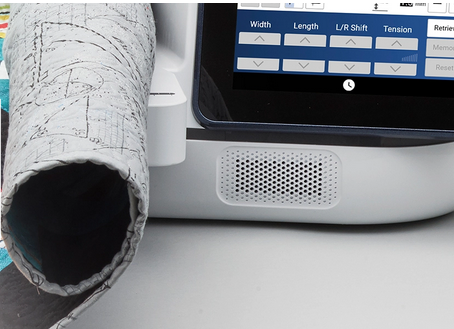

Voice Guidance

Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

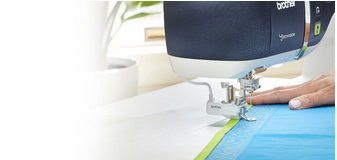

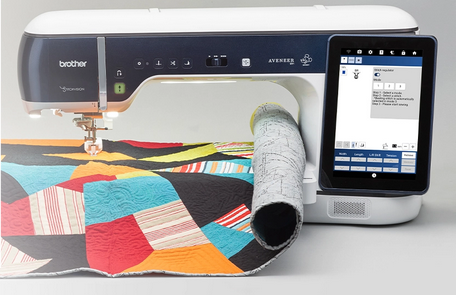

Large Workspace

The Aveener EV1 is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

8” x 5” Projector Area with StitchVision Technology

The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

BASIC FEATURES

Accessory Storage Yes
Adjustable Presser Foot Pressure Yes
Adjustable Screen Brightness Yes
Automatic Thread Cutter Yes
Branded Series Disney
Built-in Languages Yes
Built-In Memory Yes
Display Type LCD
Feed Dog Points 7
LCD Display Size (W” x H”) 10.1″
Lighting Type LED
Needle Position Key (Up/Down) Yes
Needle Threading System Automatic
Number of USB Ports 2
Presser Foot Leveling Yes
Quick Set Bobbin Yes
Realistic Preview Yes
Screensaver Yes
Stitch Selector Type Touch Panel
Thread Sensor Bobbin Sensor, Upper Thread Sensor
Thread Sensor On/Off Yes
UL/CSA Listed Yes
Wide Table Included No
Wireless Enabled Yes
Workspace Area 14.1″ x 5″

Quiltbroidery

The EV1’s Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.

Edge-to-Edge Quilting

With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1 - even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!

Dual-Purpose Stylus

For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

10.1" Capacitive Touch Screen

The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.

A Library of Built-in Designs

Browsing a vast collection of over 800 sewing stitches, 1,858 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable.

Buttonhole Preview

A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaningful feature that grants users the ability to effectively "paint with thread".

ISR Edge Detection System

Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.

ISR Intelligent Stitch Regulator

Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

Voice Guidance

Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

Large Workspace

The Aveener EV1 is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

8” x 5” Projector Area with StitchVision Technology

The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

DIMENSIONS

Carton Dimensions (W” x D” x H”) 37.598 ” x 27.717 ” x 33.661 “
Carton Weight (lbs) 102.300
Unit Dimensions (W” x D” x H”) 29.567″ x 13.268″ x 13.78″
Unit Weight (lbs) 43.431

Quiltbroidery

The EV1’s Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.

Edge-to-Edge Quilting

With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1 - even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!

Dual-Purpose Stylus

For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

10.1" Capacitive Touch Screen

The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.

A Library of Built-in Designs

Browsing a vast collection of over 800 sewing stitches, 1,858 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable.

Buttonhole Preview

A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaningful feature that grants users the ability to effectively "paint with thread".

ISR Edge Detection System

Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.

ISR Intelligent Stitch Regulator

Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

Voice Guidance

Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

Large Workspace

The Aveener EV1 is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

8” x 5” Projector Area with StitchVision Technology

The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

EMBROIDERY

Adjustable Design Icon Size Setting Yes
Adjustable Embroidery Speed Settings Yes
Appliqué Creator Function Yes
Built-In Alphabet Fonts 31
Built-In Designs 2075
Built-in Embroidery Designs featuring Disney/Pixar Characters 217
Color Shuffling Function Yes
Computer Connectivity Yes
Curved Text on Screen Editing Yes
Drag and Drop Editing Yes
Embroidery Position Marker Yes
Frame Designs – Shapes 10
Frame Designs – Stitches 14
Included Embroidery Hoops 10 5/8″ x 10 5/8″, 5″ x 7″, 4″ x 4″
InnovEye Technology Yes
Maximum Embroidery Area 11 5/8” x 18 1/4”
Maximum Embroidery Speed (spm) 1050
Maximum Zoom (%) 1600
Onscreen Automatic Density Adjustment Yes
On-Screen Editing Yes
Pattern Rotating Increments 0.1 Degree, 10 Degrees, 90 Degrees, 1 Degree
Print and Stitch Technology Yes
Programmable Monochrome Embroidery Yes
Resume Function Yes
Sewing Decorative Stitches with Embroidery Arm Attached Yes
Space Reduction among Embroidery Alphabets Yes
Speed Adjustment Yes
Thread Wiper Yes
Trial Position/Layout Function Yes

Quiltbroidery

The EV1’s Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.

Edge-to-Edge Quilting

With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1 - even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!

Dual-Purpose Stylus

For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

10.1" Capacitive Touch Screen

The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.

A Library of Built-in Designs

Browsing a vast collection of over 800 sewing stitches, 1,858 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable.

Buttonhole Preview

A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaningful feature that grants users the ability to effectively "paint with thread".

ISR Edge Detection System

Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.

ISR Intelligent Stitch Regulator

Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

Voice Guidance

Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

Large Workspace

The Aveener EV1 is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

8” x 5” Projector Area with StitchVision Technology

The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

QUILTING

Built-in Quilting Stitches Yes
Built-in Sewing Lettering Fonts 4
Drop-Feed Automatic
Free Motion Quilting Foot Yes
Included Quilting Feet Yes
ISR Intelligent Stitch Regulator Yes

Quiltbroidery

The EV1’s Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.

Edge-to-Edge Quilting

With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1 - even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!

Dual-Purpose Stylus

For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

10.1" Capacitive Touch Screen

The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.

A Library of Built-in Designs

Browsing a vast collection of over 800 sewing stitches, 1,858 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable.

Buttonhole Preview

A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaningful feature that grants users the ability to effectively "paint with thread".

ISR Edge Detection System

Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.

ISR Intelligent Stitch Regulator

Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

Voice Guidance

Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

Large Workspace

The Aveener EV1 is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

8” x 5” Projector Area with StitchVision Technology

The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

SEWING

Automatic Height Adjustment (AHA) Yes
Available Stitch Types Chain Stitch, Lock Stitch, Straight Stitch, Zigzag Stitch, Stretch Stitch, Overlock Stitch, Cover Stitch, Running Stitch, Back Stitch, Satin Stitch, Outline Stitch, Tacking Stitch
Back to Beginning Key Yes
Built-In Lettering Fonts 4
Built-In Stitch Selections (Stitches) 852
Button Hole Styles 25
Independent Bobbin Winding Motor Yes
Knee Lifter Yes
Maximum Sewing Speed (Stitches Per Minute) 1050
Multi-Directional Sewing Yes
My Custom Stitch Feature Yes
Pivot Function Yes
Reinforcement/reverse Stitches Yes
Sideways Sewing Yes
Speed Control Yes
Stitch Length (mm) 5
Stitch Width (mm) 7

Quiltbroidery

The EV1’s Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.

Edge-to-Edge Quilting

With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1 - even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!

Dual-Purpose Stylus

For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

10.1" Capacitive Touch Screen

The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.

A Library of Built-in Designs

Browsing a vast collection of over 800 sewing stitches, 1,858 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable.

Buttonhole Preview

A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaningful feature that grants users the ability to effectively "paint with thread".

ISR Edge Detection System

Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.

ISR Intelligent Stitch Regulator

Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

Voice Guidance

Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

Large Workspace

The Aveener EV1 is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

8” x 5” Projector Area with StitchVision Technology

The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

INCLUDED

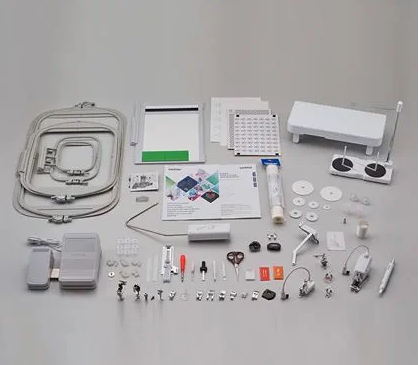

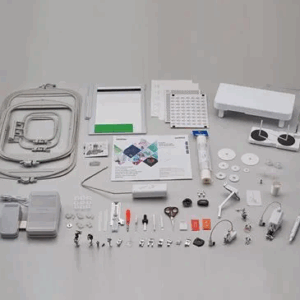

“In-Box” Consumables/Yield‡ Zigzag foot “J” (on machine), Advanced monogramming foot “N+”, Overcasting foot “G”, Zipper foot “I”, Buttonhole foot “A+”, Buttonhole foot stabilizer, Blind stitch foot “R”, Button fitting foot “M”, 1/4″ Piecing foot with guide, Straight stitch foot, Free motion quilting foot “C”, Free motion open toe quilting foot “O”, Free motion echo quilting foot “E” (Attach the included adapter to use this product), Adapter, Screw (small), Stitch regulator, Stitch regulator quilting foot, Stitch regulator open toe quilting foot, Stitch regulator echo quilting foot, Embroidery foot “W”, Compact dual feed and regular dual feed foot, Couching dual feed foot, Embroidery couching foot “Y”, Yarn guide, Yarn threader, Needle set ((2) 75/11 needles, (2) 90/14 needles, (2) 90/14 2 needles, Ball point needle (gold colored)), Twin Needle (2/11 needle), Ball point needle set (2) 75/11 needles, Ball point needle for embroidery (HAX130EBBR), Bobbin × 10 (One bobbin is on machine), Bobbin clip × 10, Seam ripper, Scissors, Cleaning brush, Eyelet punch, Screwdriver (small), Screwdriver (large), Multi-purpose screwdriver, Spool cap (small), Spool cap (medium) × 2 (One spool cap is on machine), Spool cap (large), Thread spool insert (mini king thread spool), Spool stand, Spool cap (XL) × 2, Spool holder × 2, Spool cap base × 2, Spool felt × 2, Ring × 4, Spool felt (on machine), Spool net × 2, Embroidery needle plate cover, Knee lifter, Alternate bobbin case (no color on the screw), Standard bobbin case (green marking on the screw) (on machine), Straight stitch needle plate, Cord guide bobbin cover, Bobbin cover (with mark) (on straight stitch needle plate), Bobbin cover (on machine), Embroidery frame (medium) H 100 mm × W 100 mm (approx. H 4 inches × W 4 inches), Embroidery frame (large) H 180 mm × W 130 mm (approx. H 7 inches × W 5 inches), Embroidery frame H 272 mm × W 272 mm (approx. H 10-5/8 inches × W 10-5/8 inches), Embroidery frame H 465 mm × W 297 mm (approx. H 18-1/4 inches × W 11-5/8 inches), Scanning frame, Magnet × 6, Embroidery bobbin thread, Embroidery positioning sticker sheets × 2, White calibration stickers (solid), Stabilizer material, Grid sheet set, Dual purpose stylus, Accessory case, Advanced multi-function foot controller (Main foot controller, Side pedal, Mounting plate, Mounting screw × 2), Bobbin center pin and instruction sheet, End point stickers (4 sheets, 243 stickers per sheet), Quick Reference Guide, Product Safety Guide, Support table

Quiltbroidery

The EV1’s Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.

Edge-to-Edge Quilting

With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1 - even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!

Dual-Purpose Stylus

For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

10.1" Capacitive Touch Screen

The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.

A Library of Built-in Designs

Browsing a vast collection of over 800 sewing stitches, 1,858 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable.

Buttonhole Preview

A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaningful feature that grants users the ability to effectively "paint with thread".

ISR Edge Detection System

Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.

ISR Intelligent Stitch Regulator

Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

Voice Guidance

Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

Large Workspace

The Aveener EV1 is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

8” x 5” Projector Area with StitchVision Technology

The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

WARRANTY

3 Year Limited Parts & Labor, 6 Year Electronic Components and Printed Circuit Boards, 25 Year Limited Chassis

Quiltbroidery

The EV1’s Quiltbroidery features are all about versatility. With five options for two-color quilting sash designs, it’s easy to create a variety of eye-catching, colorful borders and quilting patterns, including easy-to-connect two-color designs. The auto-split designs are further enhanced with 5 hexagon shapes for additional creativity. Offering single or triple-stitch options for sash quilting stitches that stand out on all projects.

Edge-to-Edge Quilting

With easy-to-follow instructions and 15 patterns to choose from, including 5 new patterns, this dynamic feature lets users finish their quilt directly on the Aveneer EV1 - even with our 7" x 12" or 10" x 10" magnetic hoops. A great substitute for a long arm!

Dual-Purpose Stylus

For more accuracy than ever before, we've included a Dual-Tip Stylus. Easily make adjustments to stitches directly on fabric, choose different stitches, or preview background colors. The fine tip is ideal for use on the LCD display and provides the ability to select, move or enhance projects.

10.1" Capacitive Touch Screen

The 10.1" Capacitive Touch Screen is the control center and is incredibly useful for reviewing detailed steps, categories, and designs. With navigation similar to a tablet, it's intuitive and easy to use. Responding to familiar sliding, swiping, scrolling, and pinch-to-zoom actions enables effortless viewing of built-in designs.

A Library of Built-in Designs

Browsing a vast collection of over 800 sewing stitches, 1,858 embroidery designs, 31 fonts, and over 200 Disney character patterns from the large 10.1" Capacitive LCD Touch Screen is easy and comfortable.

Buttonhole Preview

A first in the industry, this innovative feature lets users preview the style, vertical or horizontal placement, and spacing of buttonholes through the powerful projector1.

Picture Play Embroidery Function

Elevating personalization to soaring new levels, the Aveneer EV1 uses AI (Artificial Intelligence) technology to transform photos or images into thread art - directly on-screen. With a choice of ten embroidery filter options, the Picture Play Embroidery function is a meaningful feature that grants users the ability to effectively "paint with thread".

ISR Edge Detection System

Can be used in one of three settings: Continuous, Intermittent, and Basting for free-motion stitching quilts of any size.

ISR Intelligent Stitch Regulator

Keeping all stitch lengths even, this feature adjusts the needle timing to match the actual speed of the fabric being fed into the machine. Operational in three modes and includes three free motion interchangeable feet.

Voice Guidance

Gently guides users audibly through next steps of a project with a choice of voices in 6 languages.

Large Workspace

The Aveener EV1 is made to handle projects of almost any size – from large home décor creations to customized garments, the generous 14.1” needle-to-arm distance can accommodate even a king size quilt. Even more, it’s got the largest and most advanced embroidery frame that Brother has ever offered – measuring 11 5/8” x 18 ¼”, larger-than-life embroidery projects can be made with ease.

8” x 5” Projector Area with StitchVision Technology

The large projection uses brilliant StitchVision Technology1 to project designs in sharp, high resolution onto fabric, so users can clearly see designs before stitching them1.Operational in both embroidery and sewing modes, it enables editing within the projected area in real-time. The guideline marker offers the choice of 16 colors to ensure visibility against a range of fabrics with the added precision of 8 different angles.

Reviews

There are no reviews yet.

Be the first to review “Brother Aveneer EV1 Sewing and Embroidery machine”

Your email address will not be published. Required fields are marked *
